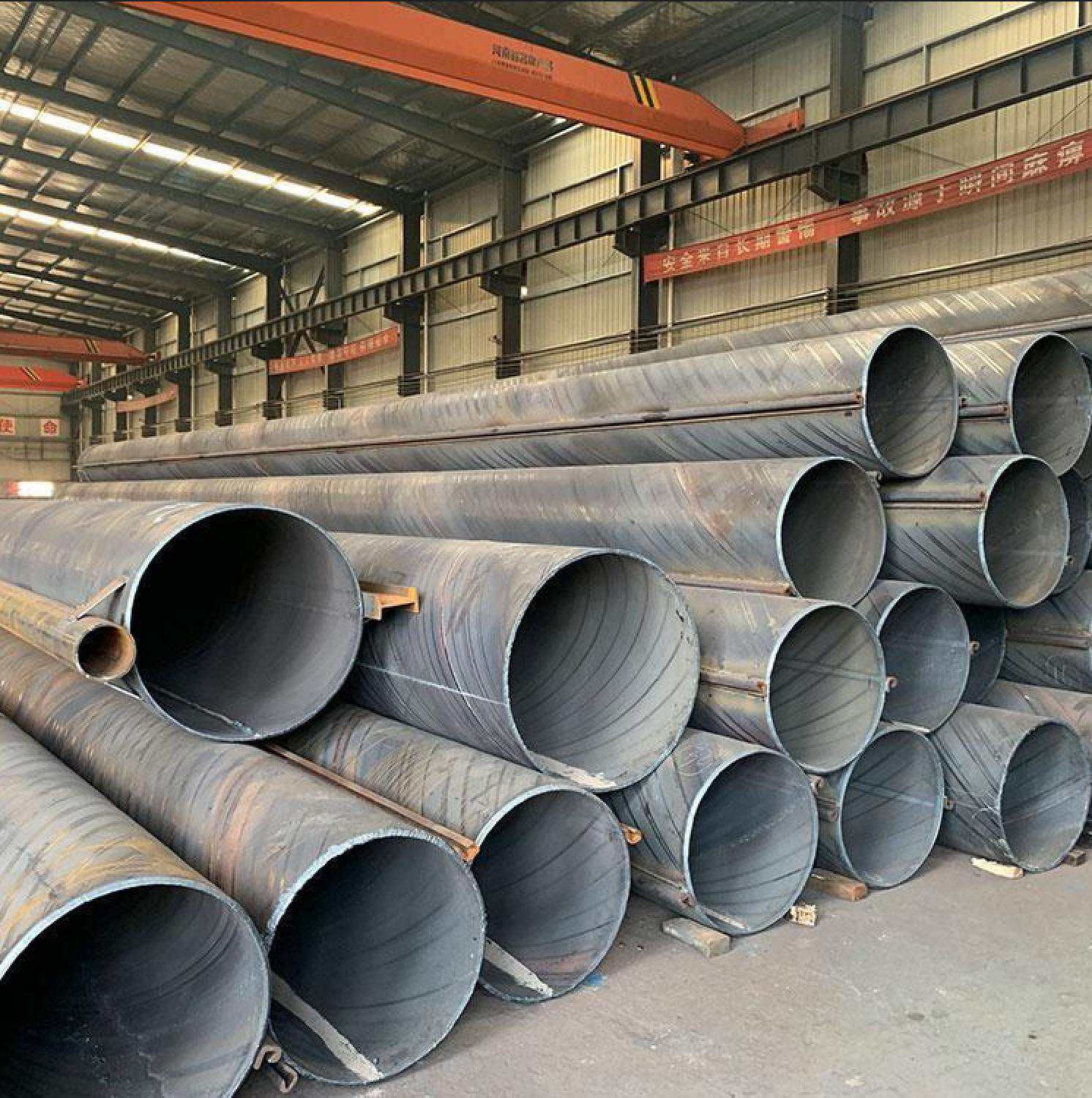

Product Name: Piling Pipe.

Outer Diameter: 219-3500mm, WT: 6-25mm, L: 6-18m.

Wall Thickness: 5 - 25mm.

Length: 6-18m or As Customer Requirement.

Standard: ASTM A252,API.

Material Grade (EN):Grade1/2/3.

Ends: Beveled, Square Cut, With LTC/STC/BC/VAM Connection

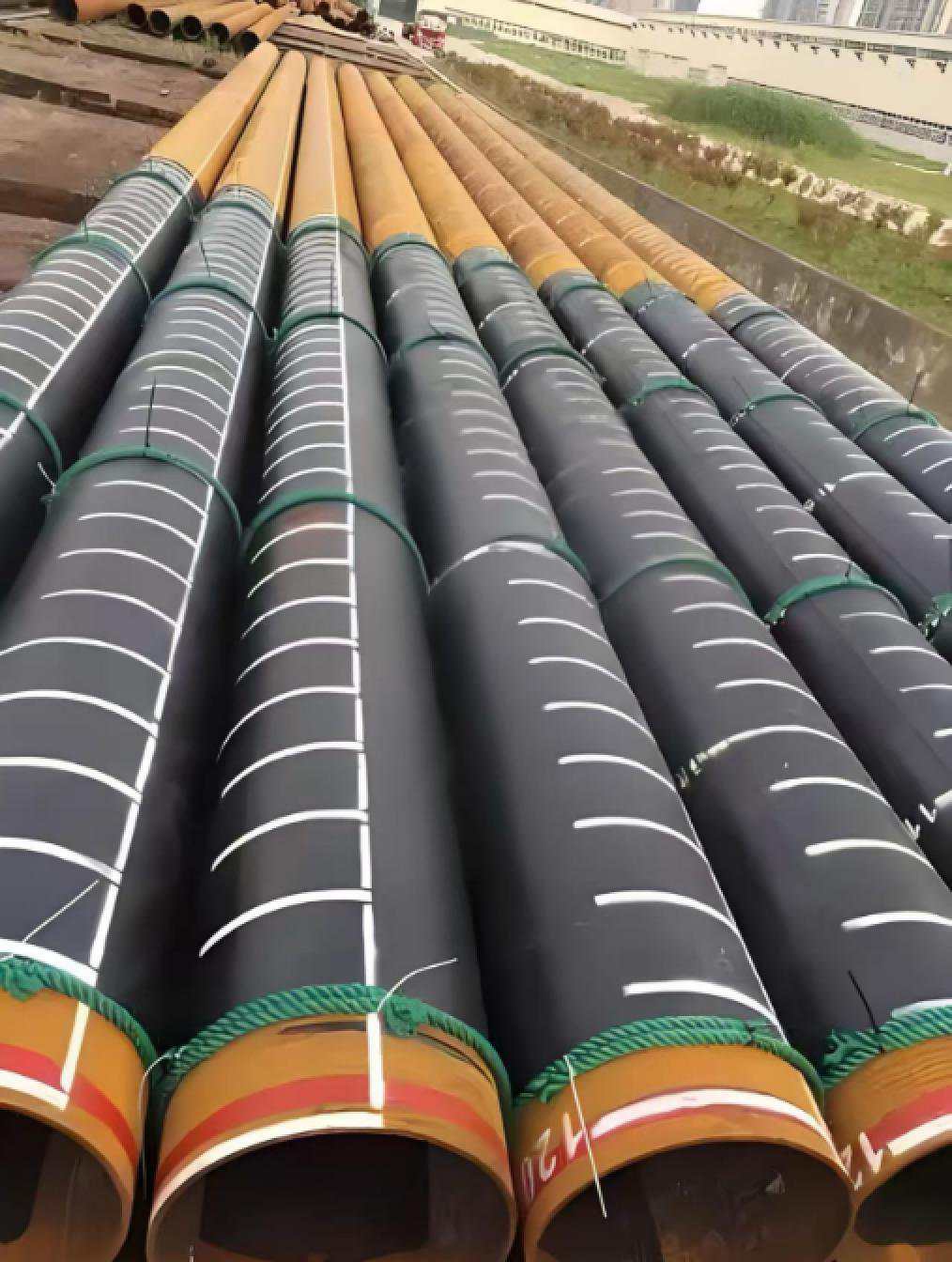

Surface Treatment: Bare, Lightly Oiling, Black Painting, Anti-corrosion coating.

Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.


Common sizes range from 8” in diameter to over 50” in diameter.

Nominal Pipe Size Outside Diameter (mm) Nominal Wall Thickness Schedule
NPS DN OD SCH 5 SCH 10 SCH 20 SCH 30 SCH Sth SCH 40 SCH 60 SCH XS SCH 80 SCH 100 SCH 120 SCH 140
8 200 219.1 2.77 3.76 6.35 7.04 8.18 8.18 10.31 12.7 12.7 15.09 18.26 20.62
10 250 273 3.4 4.19 6.35 7.8 9.27 9.27 12.7 12.7 15.09 18.26 21.44 25.4
12 300 323.8 3.96 4.57 6.35 8.38 9.53 10.31 14.27 12.7 17.48 21.44 25.4
14 350 355.6 3.96 6.35 7.92 9.53 9.53 11.13 15.09 12.7 19.05 23.83
16 400 406.4 4.19 6.35 7.92 9.53 9.53 12.7 16.66 12.7 21.44
18 450 457 4.19 6.35 7.92 11.13 9.53 14.27 19.05 12.7 23.83
20 500 508 4.78 6.35 9.53 12.7 9.53 15.09 20.62 12.7
22 550 559 4.78 6.35 9.53 12.7 9.53 22.23 12.7
24 600 610 5.54 6.35 9.53 14.27 9.53 17.48 24.61 12.7
26 650 660 7.92 12.7 9.53 12.7
28 700 711 7.92 12.7 15.88 9.53 12.7
30 750 762 6.35 7.92 12.7 15.88 9.53 12.7
32 800 813 7.92 12.7 15.88 9.53 17.48 12.7
34 850 864 7.92 12.7 15.88 9.53 17.48 12.7
36 900 914 7.92 12.7 15.88 9.53 19.05 12.7
38 950 965
40 1000 1016
42 1050 1067
44 1100 1118
46 1150 1168
48 1200 1219
