| Product Name | Standard | Dimension | Steel Code / Steel Grade |
|---|---|---|---|
| Seamless Austenitic Stainless Steel Pipes | ASTM A312/A312M, ASME SA312/SA312M | OD: 1/4"~20" WT: SCH5S~SCH80S |
TP304, TP304L, TP304H, TP310, TP310S, TP316, TP316L, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H |
| Seamless Austenitic Stainless Steel Tubing for General Service | ASTM A269, ASME SA269 | OD: 6.0~50.8mm WT: 0.8~10.0mm |
TP304, TP304L, TP304H, TP310, TP310S, TP316, TP316L, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H |
| Seamless Austenitic Alloy-Steel Boiler, Super Heater and Heat-Exchanger Tubes | ASTM A213/A213M, ASME SA213/SA213M | OD: 6.0~50.8mm WT: 0.8~10.0mm |
TP304, TP304L, TP304H, TP310, TP310S, TP316, TP316L, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H |
| Seamless Duplex Stainless Steel Tubing for General Service | ASTM A789 / A789M | OD: 19.0~60.5mm WT: 1.2~5.0mm |
S31803, S32205, S32750 |
| Seamless Duplex Stainless Steel Pipes | ASTM A790 / A790M | OD: 3/4"~10" WT: SCH5S~SCH80S |
S31803, S32205, S32750 |
| Seamless Stainless Steel Mechanical Tubing | ASTM A511 | OD: 6.0~50.8mm WT: 1.8~10.0mm |
MT304, MT304L, MT304H, MT310, MT310S, MT316, MT316L, MT317, MT317L, MT321, MT321H, MT347 |
| Seamless Stainless Steel Tubes for Pressure Purposes | EN 10216, DIN 17456, 17458 | OD: 6.0~530.0mm WT: 0.8~34.0mm |
1.4301, 1.4307, 1.4541, 1.4401, 1.4404, 1.4571, 1.4878, 1.4432, 1.4462 |

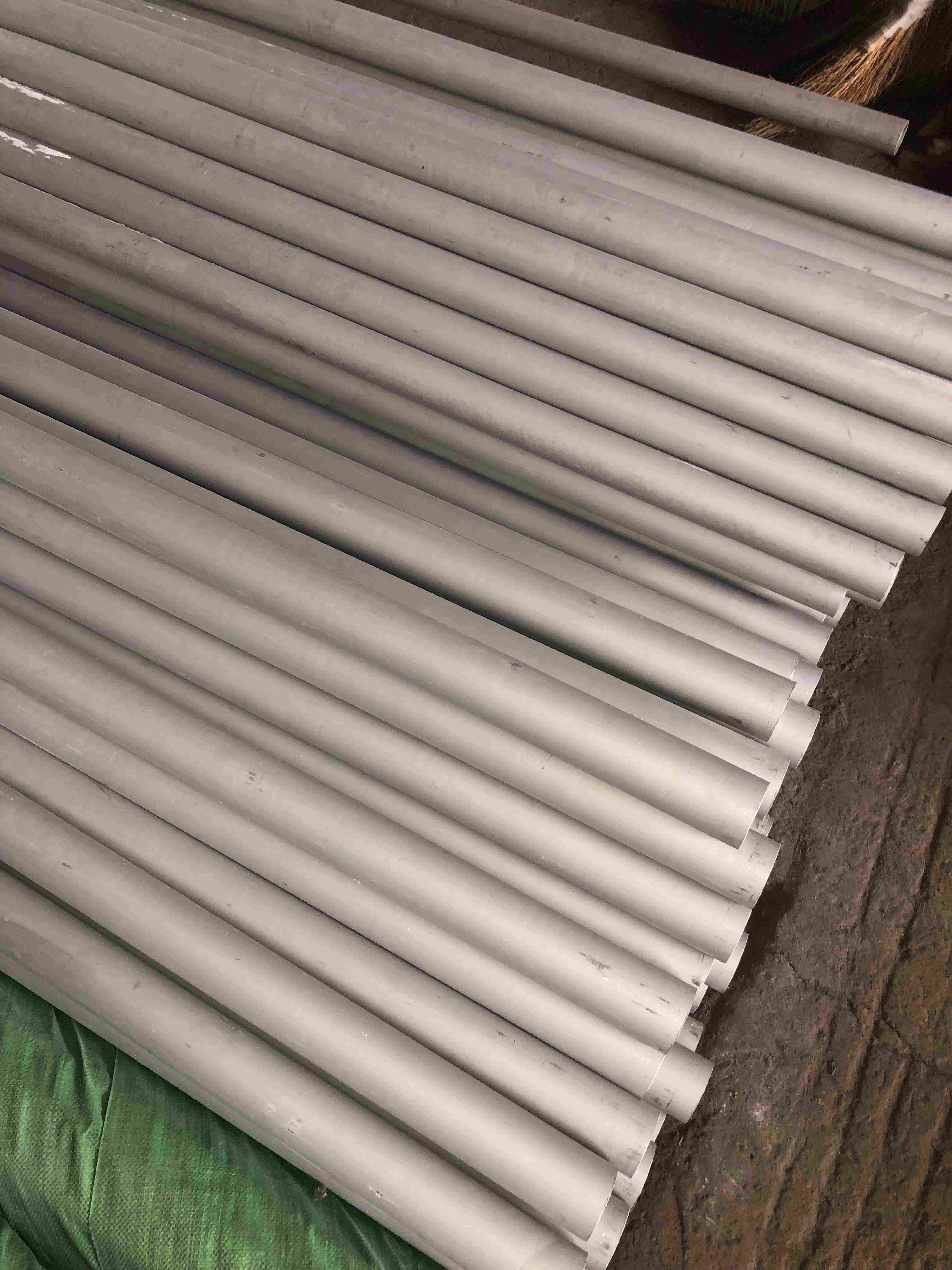

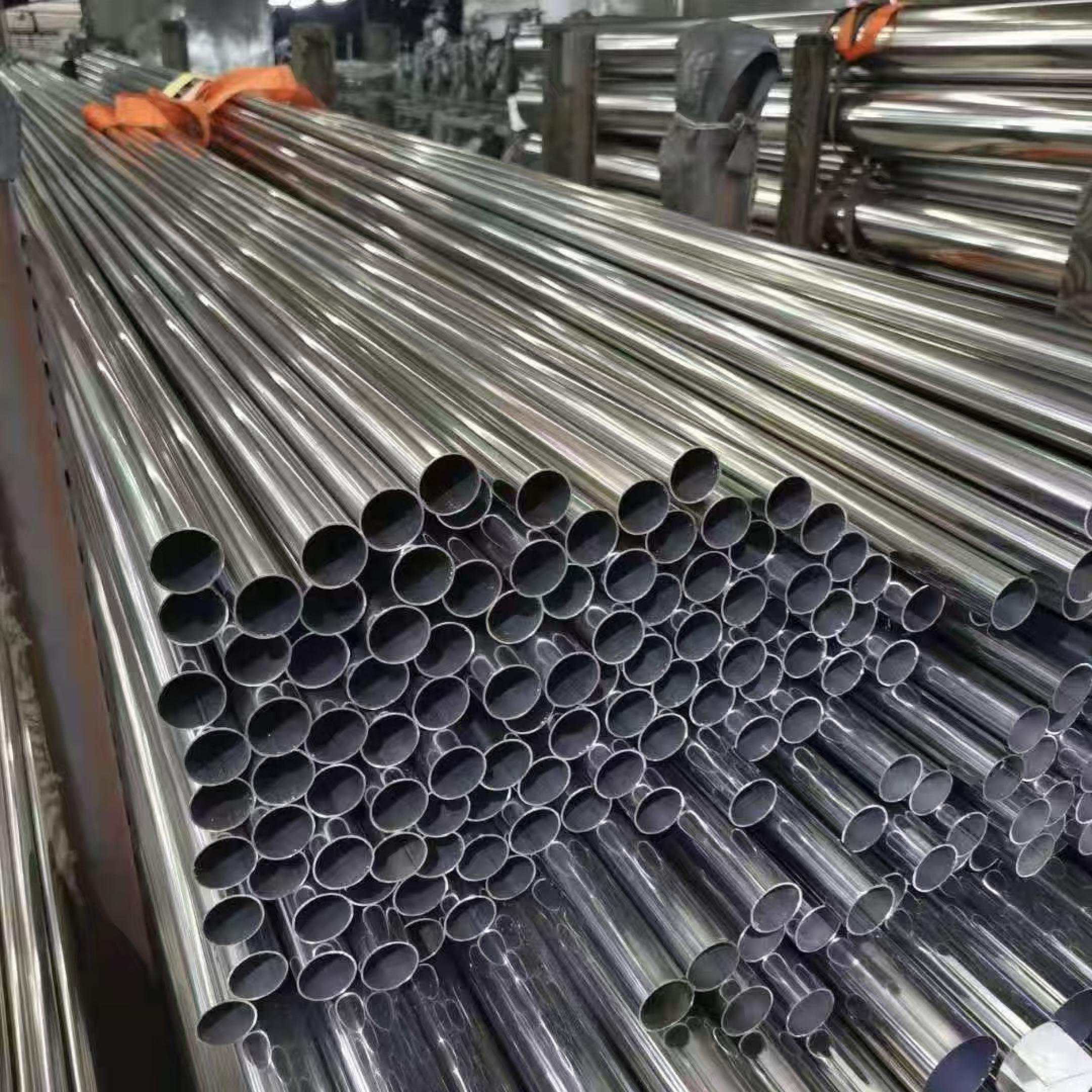

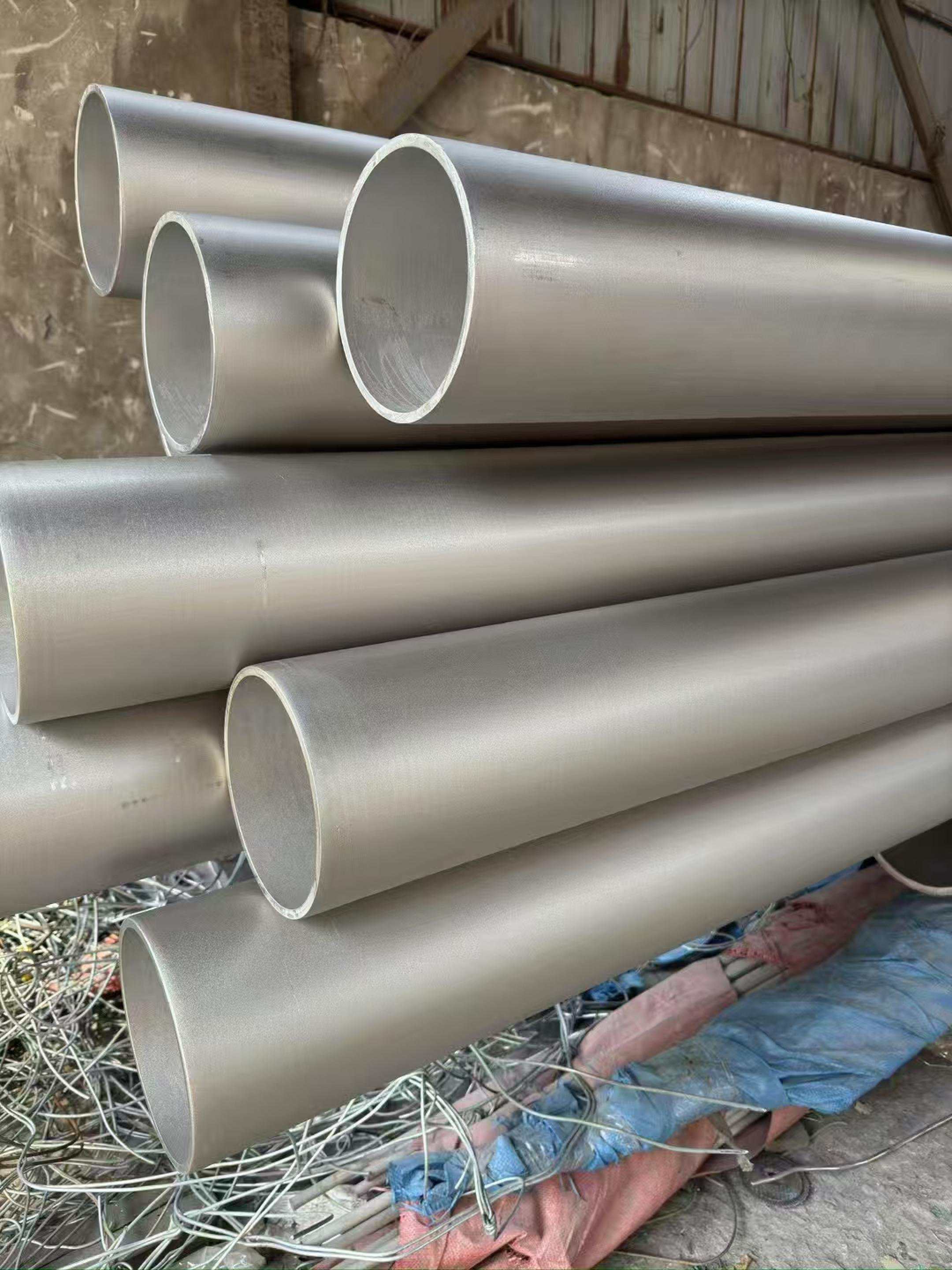

Seamless Stainless Pipe
Size Range: OD: 6-762mm, Thickness: 0.5-50mm.
Max length: 18000mm.
Schedules: 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH.
Surface: BA, 2B, NO.1, NO.4, 4K, HL, 8K.
Materials: 304 (0Cr18Ni9),304L (00Cr19Ni10),1Cr18Ni9Ti,321H (0Cr18Ni10Ti),310S (0Cr25Ni20),347H (0Cr19Ni11Nb),316 (0Cr17Ni12M02),316L (00Crl 7Ni14M02),316Ti (0Crl 7Ni12M02Ti),317 00Crl 9Ni13M03) ,S31803,S32205,S32750,S32760 etc.
